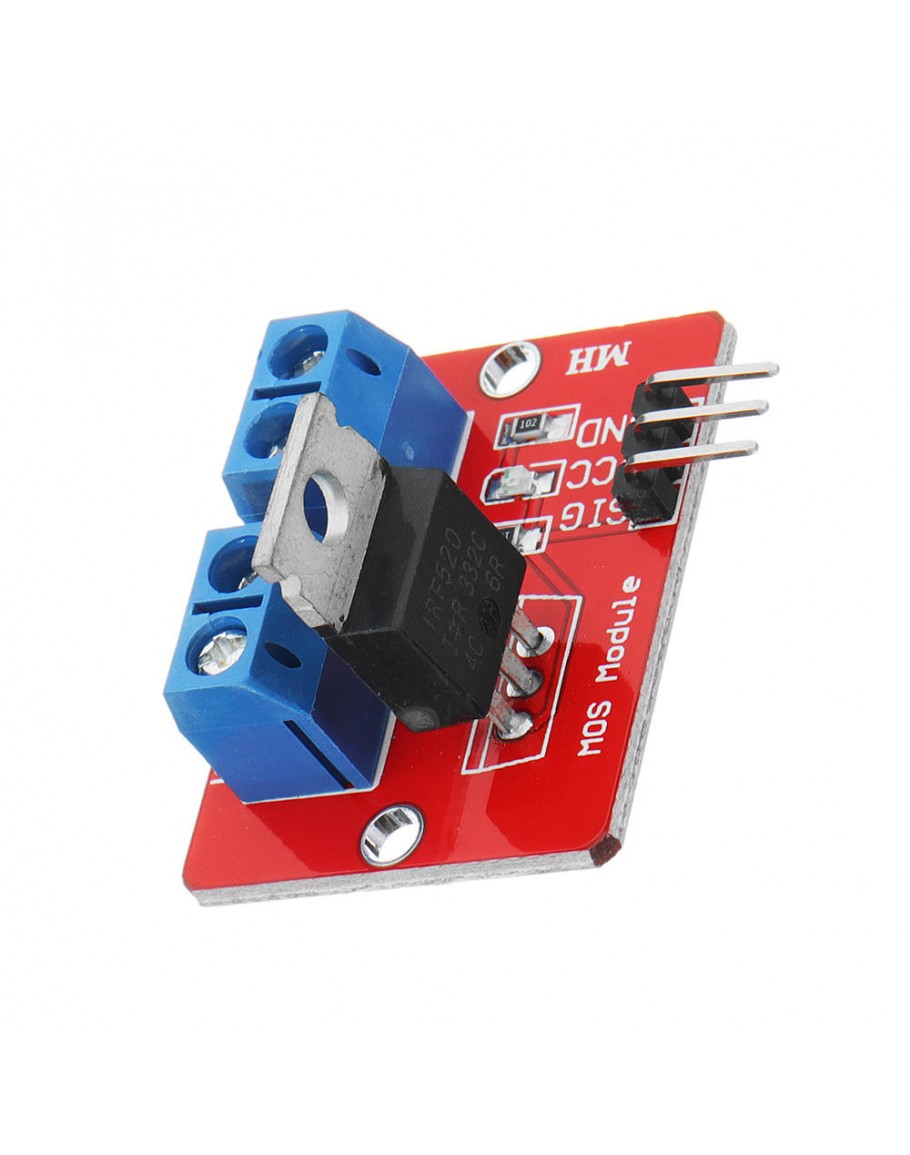

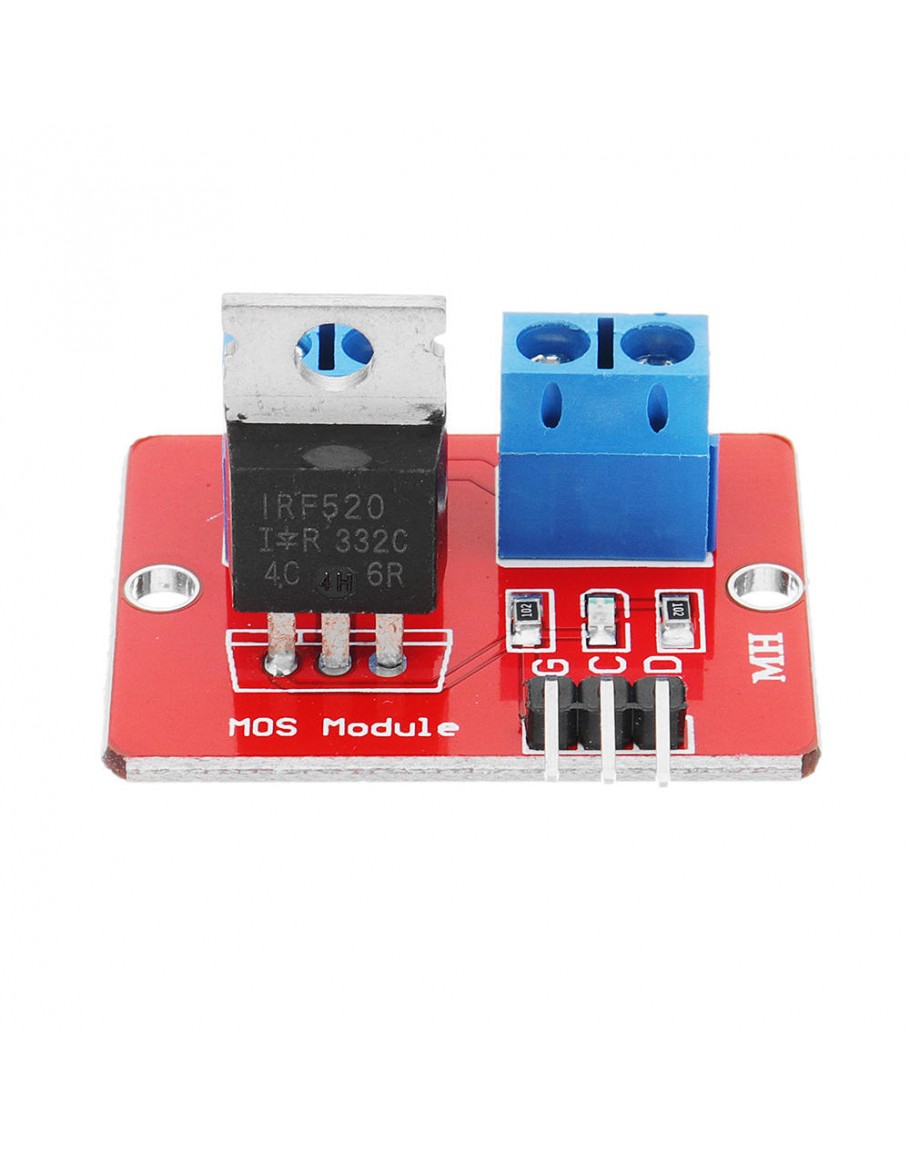

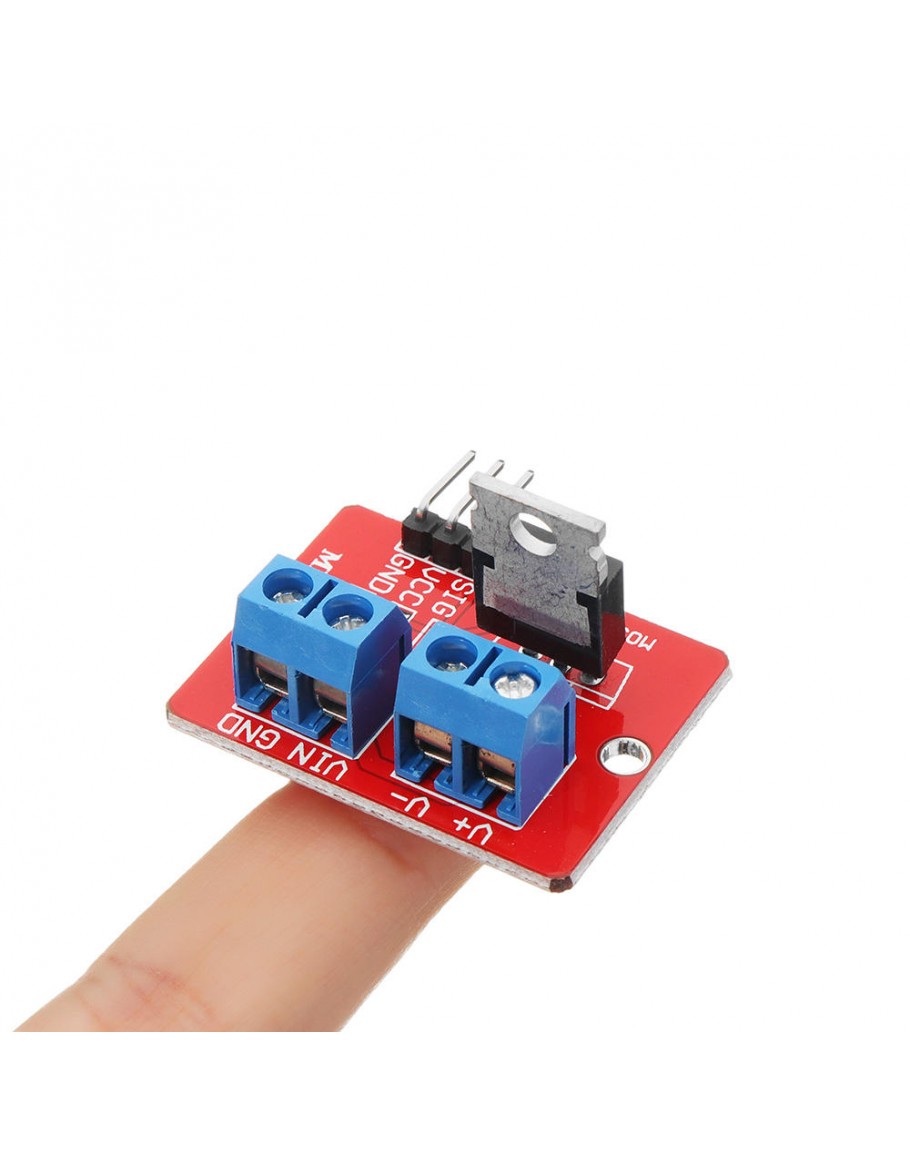

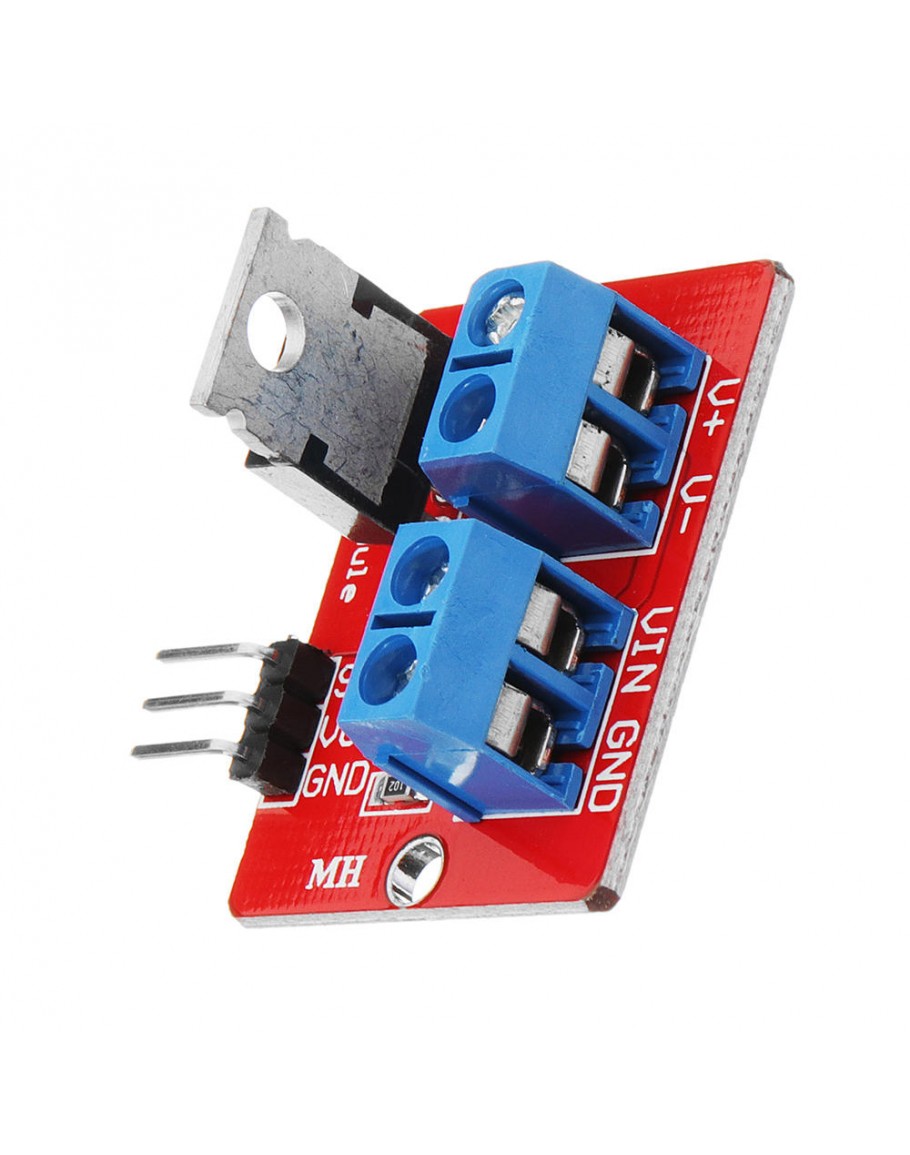

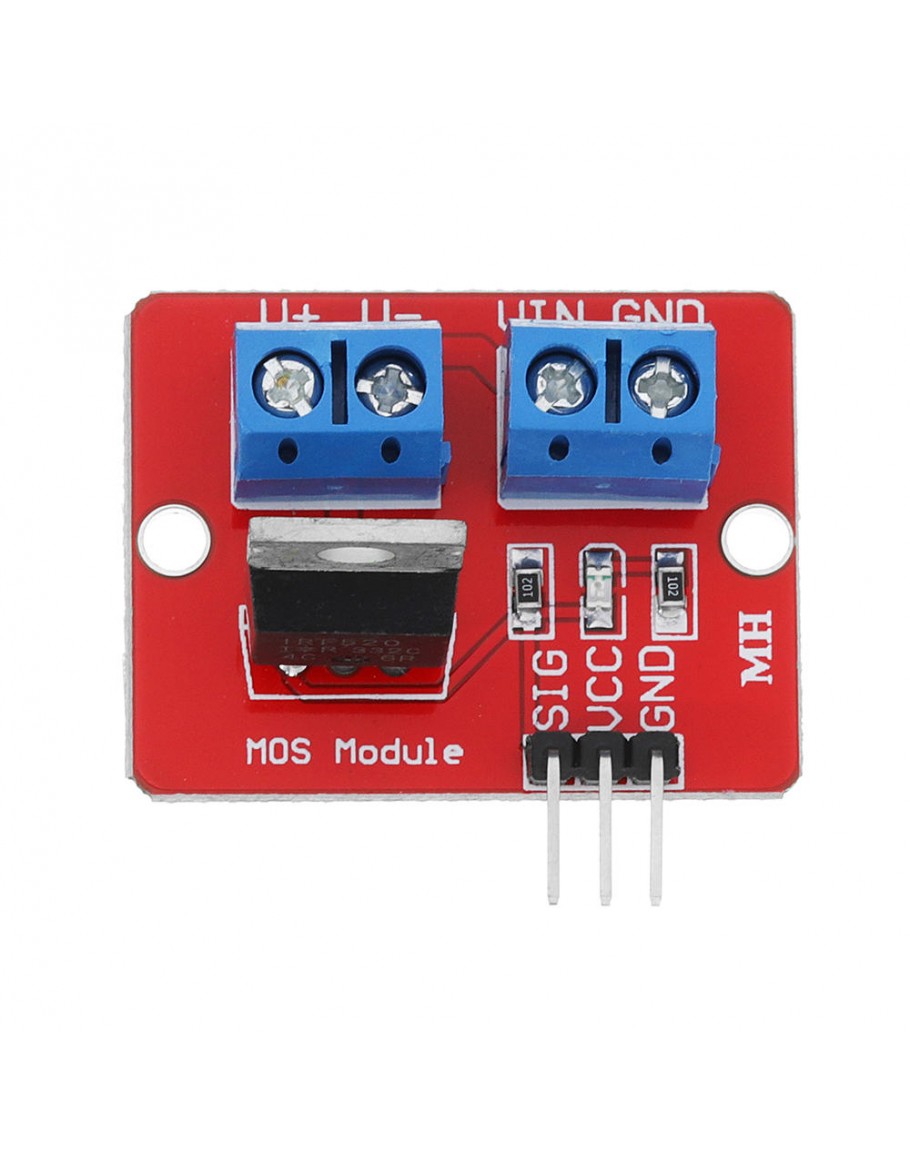

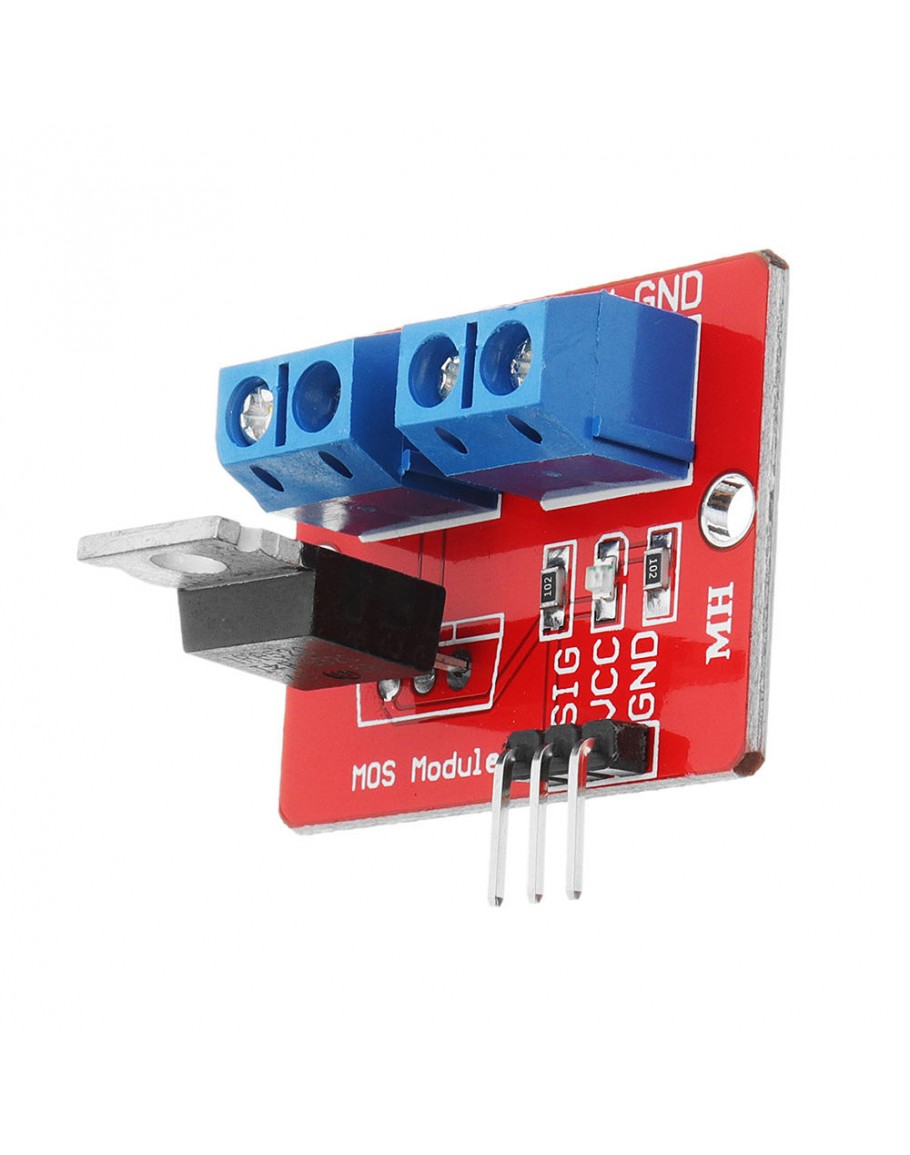

0-24V Top Mosfet Button IRF520 MOS Driver Module For Arduino MCU ARM Raspberry Pi

Features:

1. Using original IRF520 power MOS tube, can adjust PWM output
2. Can let the Arduino drive up to 24v load, such as LED lights belt, DC motor, micro pump, solenoid valve
3. By PWM adjustable can realize stepless dimming LED, motor stepless speed regulation

Specifications:

Size: 33.4 * 25.6MM
Voltage: 3.3V, 5V
Port: the digital quantity level
The output load voltage: 0 to 24V
The output load current: < 5A (more than 1A need to add heat sink)
Platform: the Arduino, MCU, ARM, Raspberry Pi

Instructions:

PWM signal for high level effectively
When the PWM for high level (3.3 V to 3.3 V) :
As the power supply voltage, between V + and V - working indicator, work load
When the PWM is low level (0 V to 0.5 V) :
V + and V - between 0, work lights out, don't work load

Package Included:1x IRF520 Module
