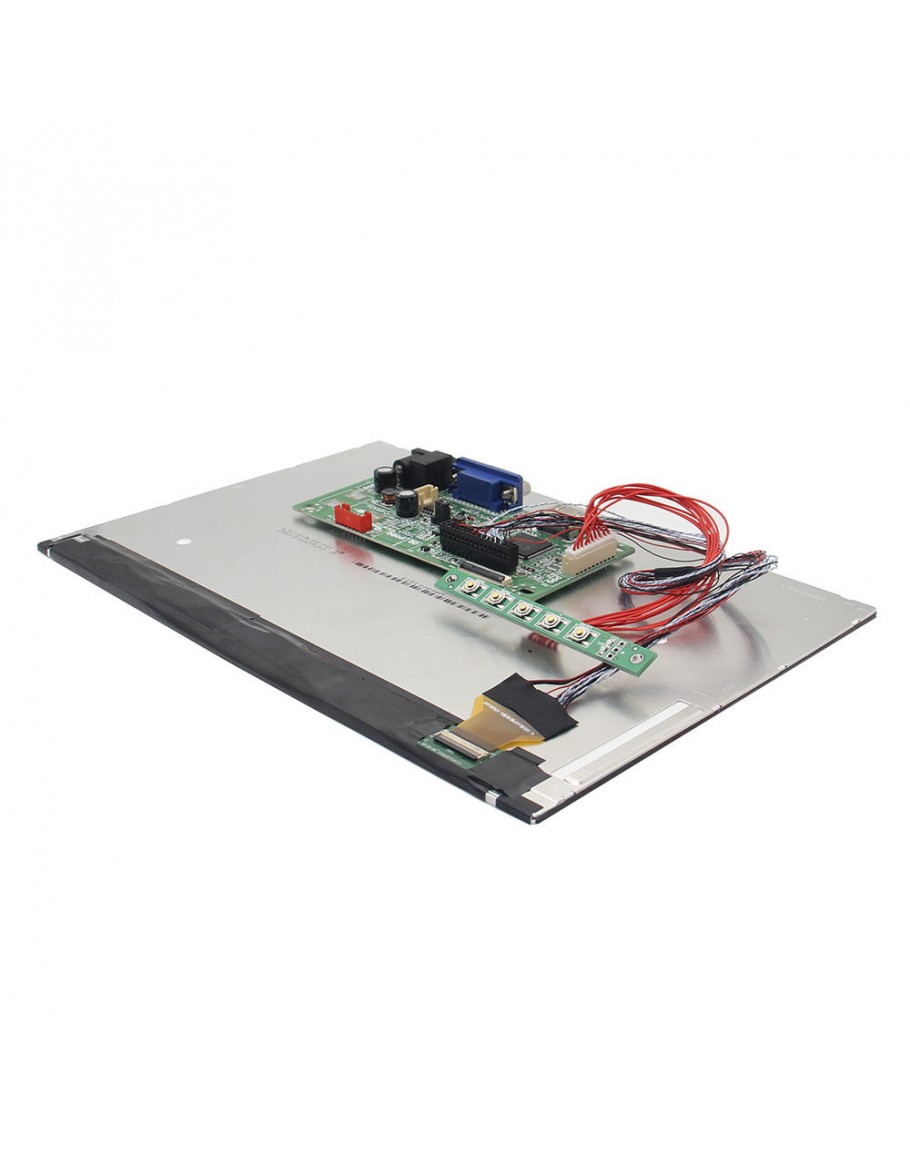

10.1 inch 2K Resolution 2560x1600(16:10) Independent Display Monitor TFT Screen With Driver Board&Keyboard Module For Raspberry Pi/Orange Pi/PC/Tablet PC

Overview:

This Model LR1012K01 Display is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 10.1" contains 2560 x 1600(16:10) and can display up to 16,194,277 colors. 6 O'clock direction is the optimum viewing angle.

Features:

High contrast ratio, Ultra wide viewing angle
2560 x 1600(16:10) WQ resolution, 16,194,277 colors
Low power consumption
LED Back Light with internal LED Driver
With OBD menu, support multi languge menu.
Fast Response
eDP(V1.1) Input Interface
LVDS Interface 2CH
Green product (BFR/CFR/PVC Free)
Signal input: HDMI input or VGA & Audio Input(VGA only support Image signal)

Notice:

The Raspberry pi 3B+ only support the maximum resolution 1920 x 1080, not 2560x1600.

Power Supply:

Wide voltage input, DC 7V-12V, 2A

Applications:

- Tablet PC
- Desktop Computer
- Raspberry Pi 3 Model B+  3B  2B  B+
- Orange Pi Series
- Beaglebone Black Series

Specification:

- Display area: 216.576mm(H) X 135.36mm(V) (10.05”diagonal)
- Driver element: a-Si TFT active matrix
- Display colors: 16,194,277(6bit+FRC)
- Resolution: 2560 * 1600 (16:10)
- Pixel arrangement: RGBW vertical stripe
- Pixel pitch: 0.0423mm(H) x 0.0846mm(V) (TYP.)
- Display Mode: Normally black (PLS mode)
- Surface treatment: 2H (Glare)More info., can refer to WIKI

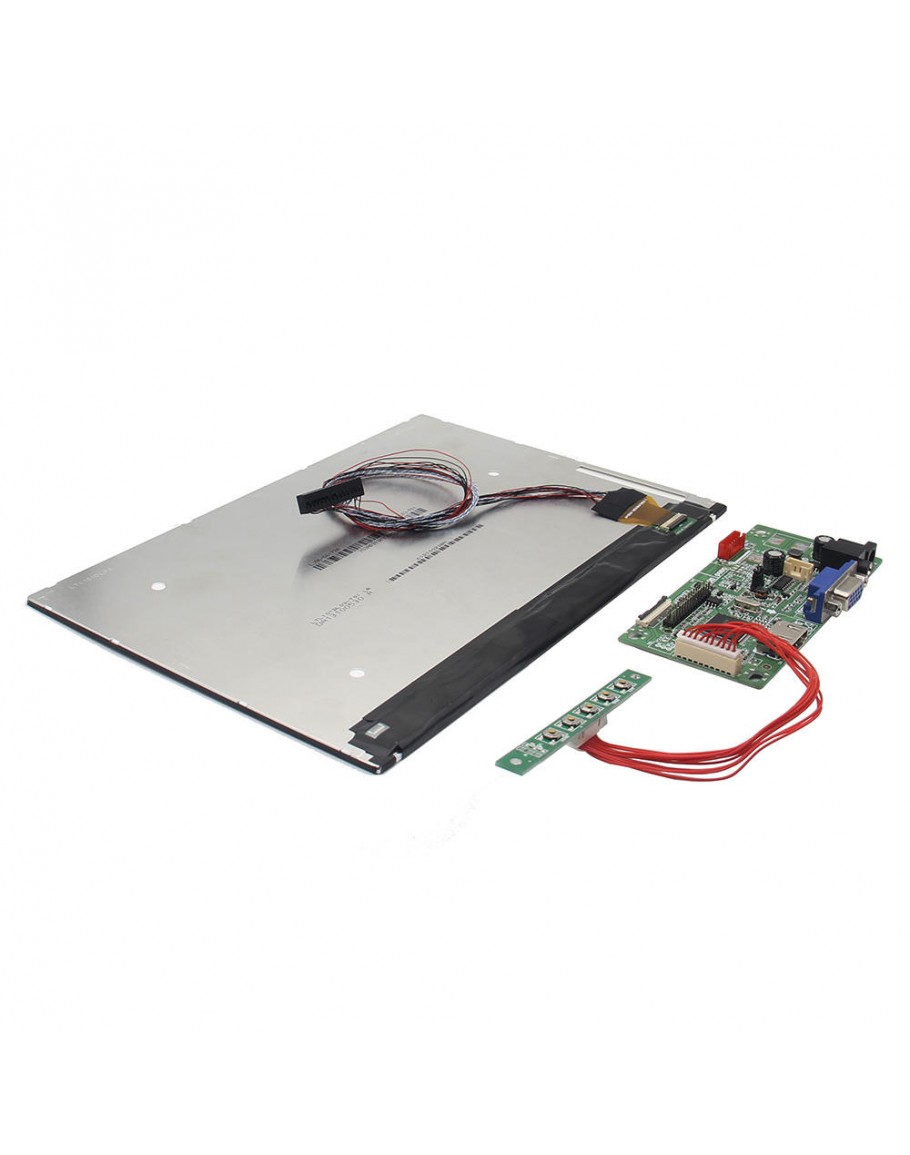

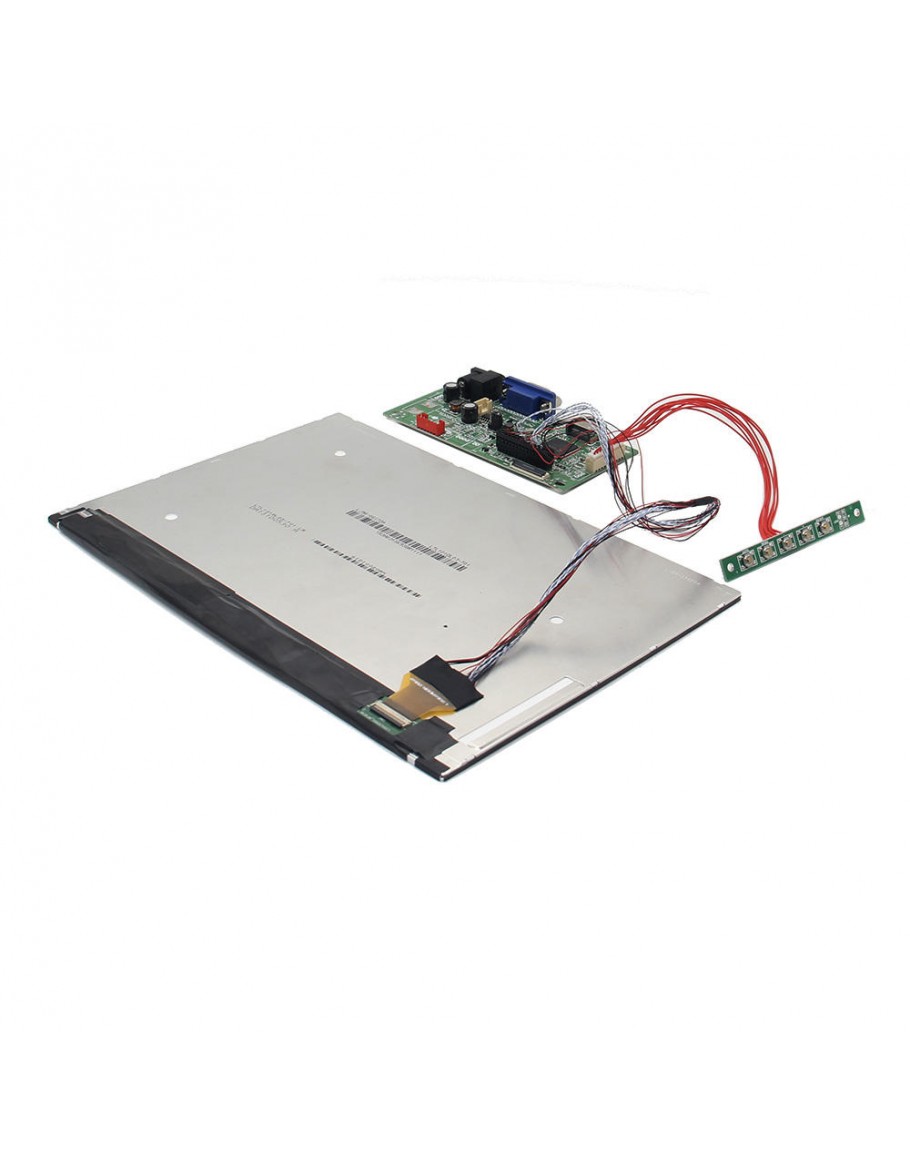

Package Included:

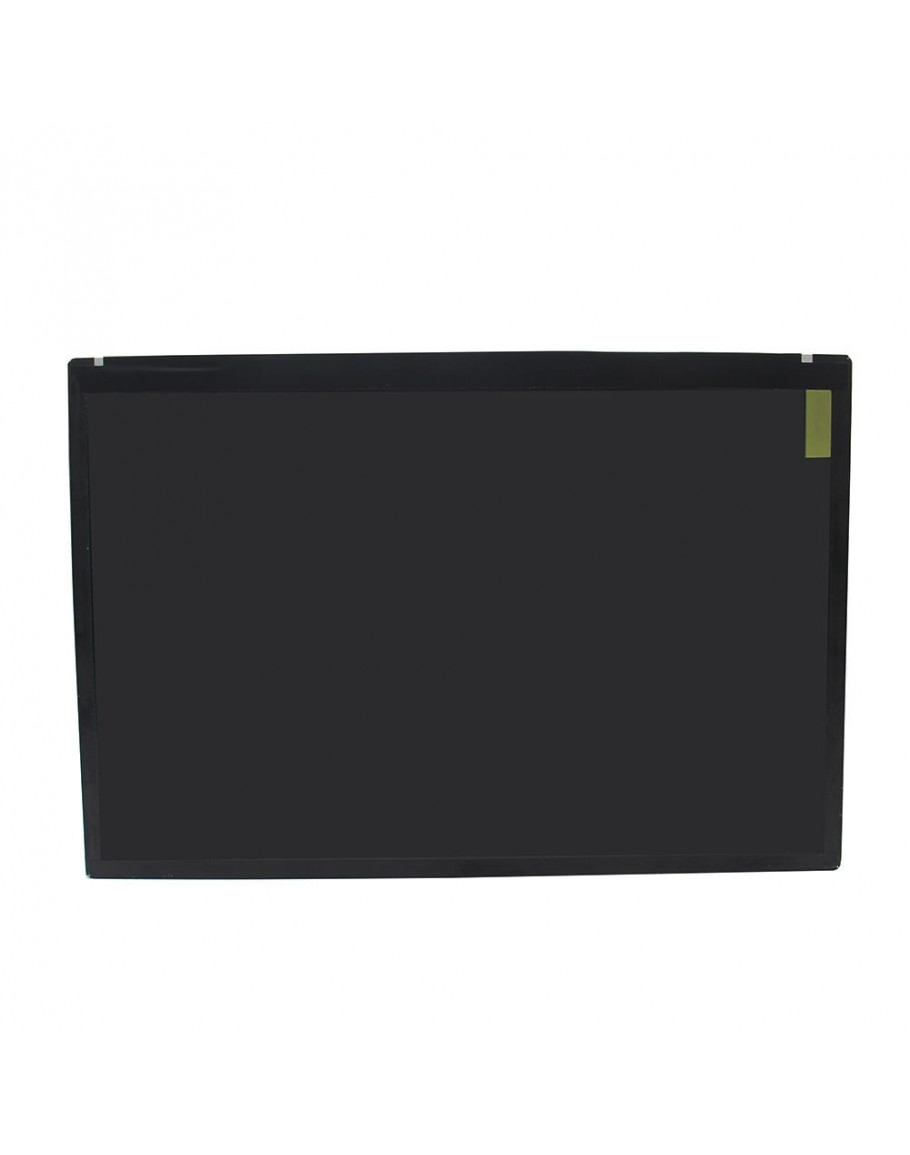

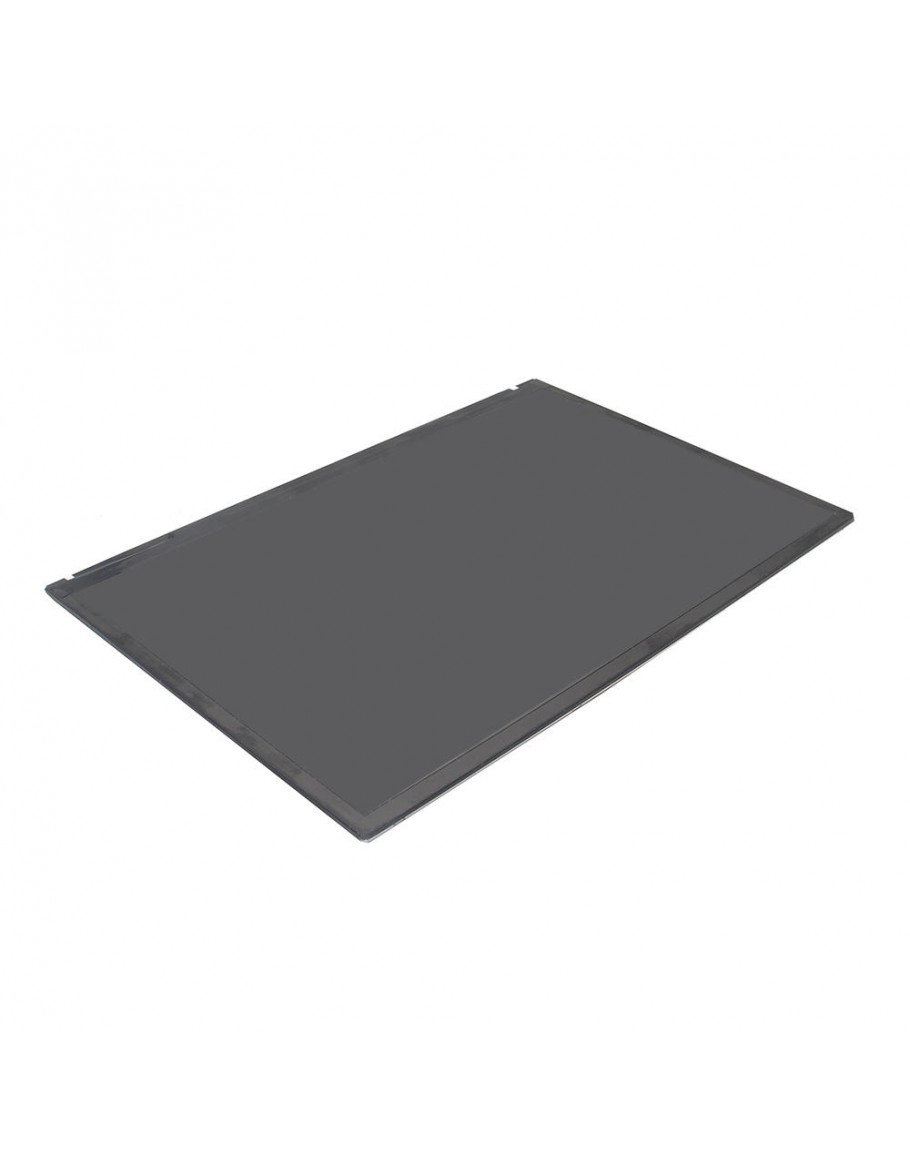

1 x 10.1 Inch Full HD Screen

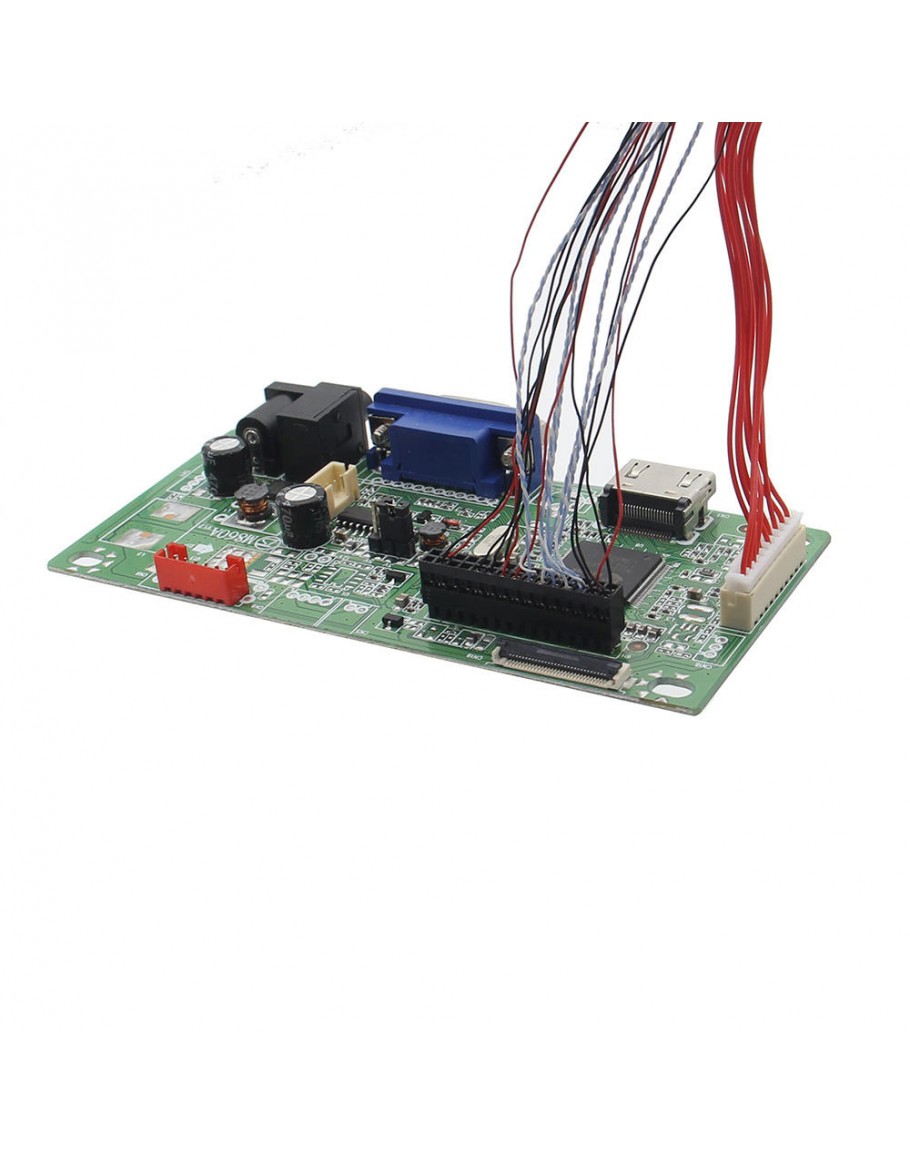

1 x Drive Board
1 x Keyboard Board
