12V 4.8W 37-520 High Torque Reducer AB Dual Phase Hall Encoder DC Motor for Smart Car DIY Part
- $13.77
Introduction:

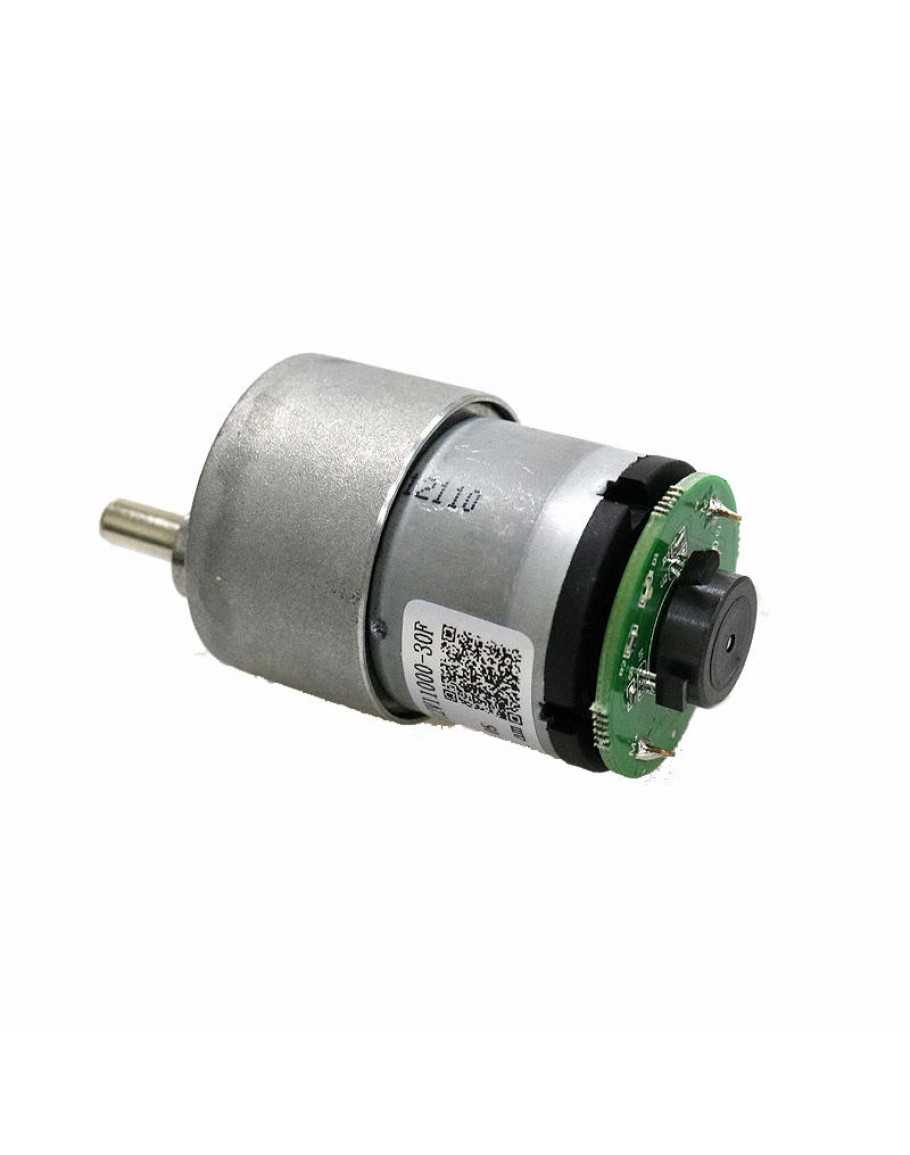

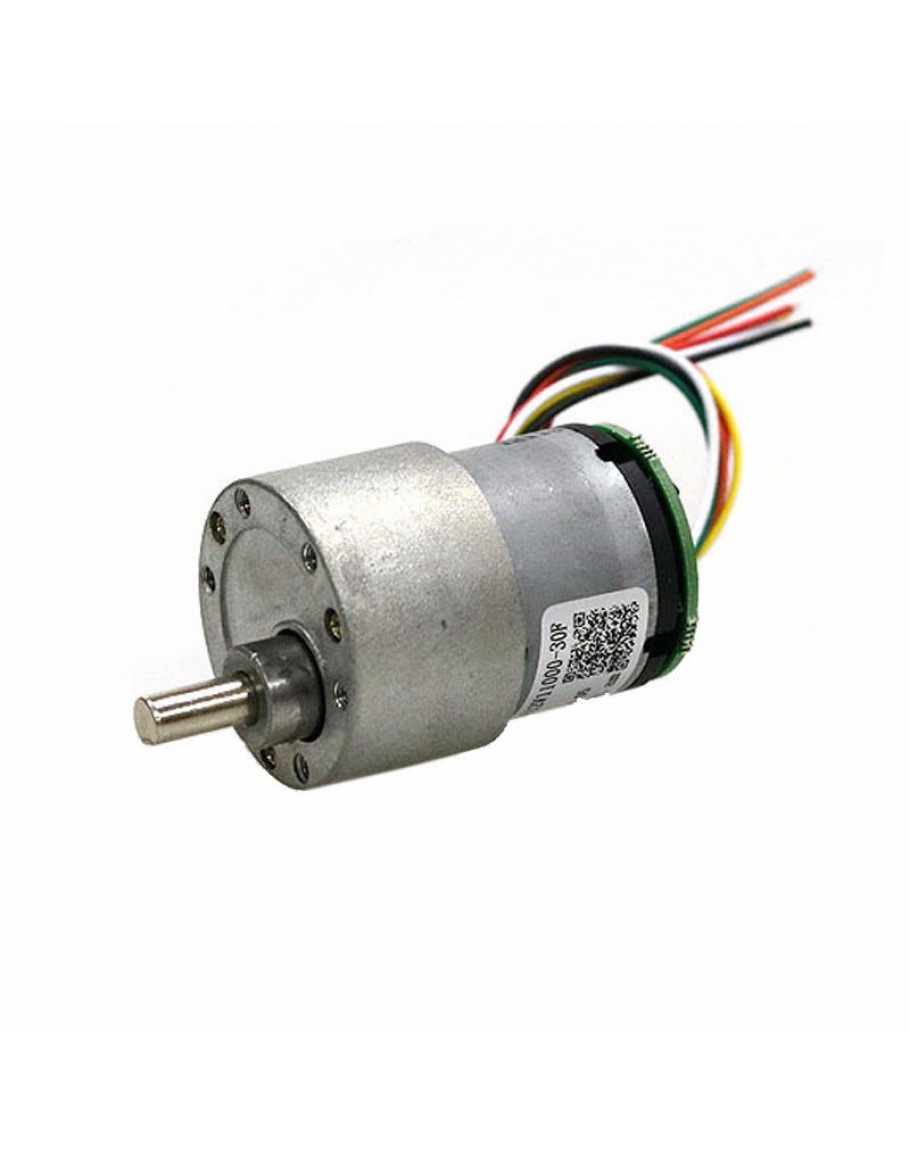

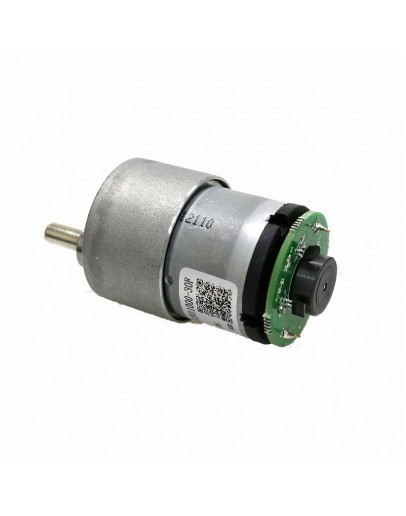

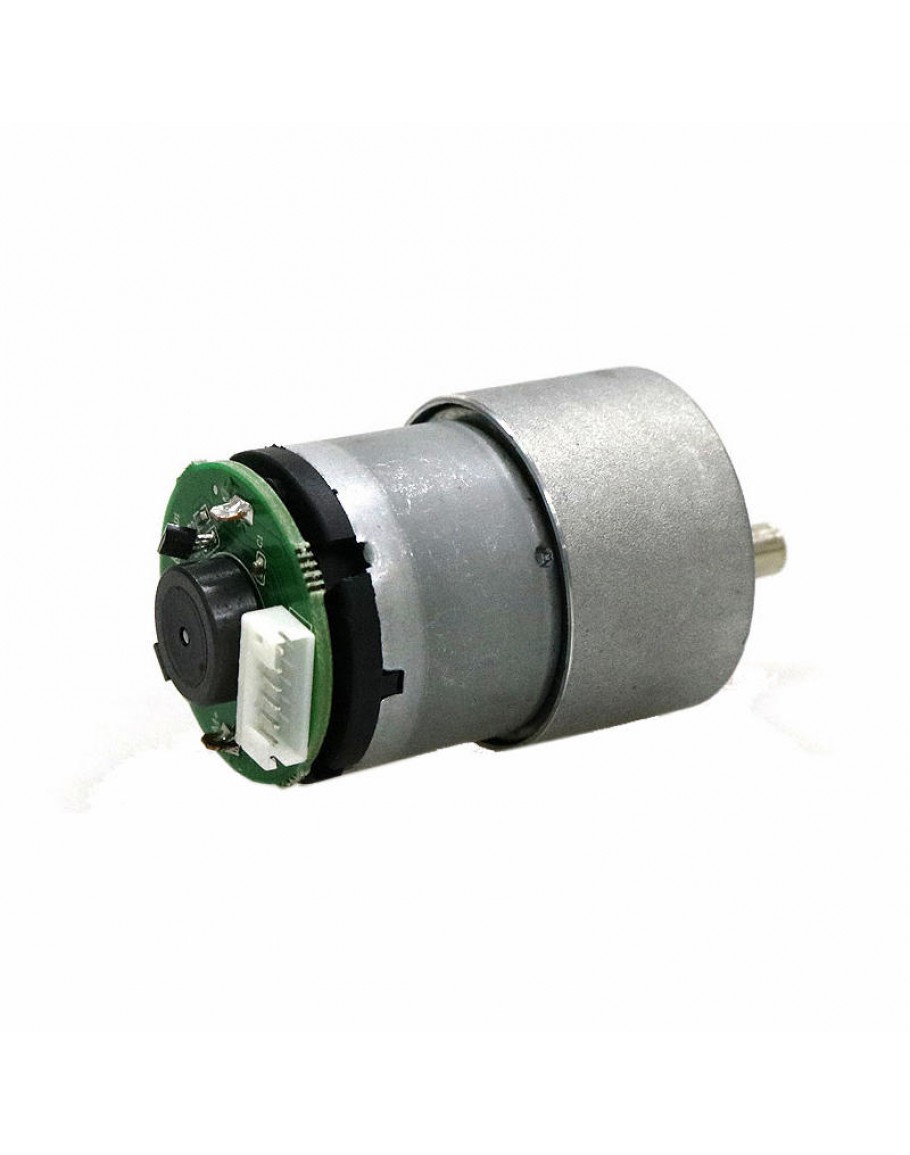

The 37-520 motor comes with a high-precision magnetic encoder and equipped with a Hall encoder. It has the characteristics of high precision and strong anti-interference ability. It is the best choice for DIY balance car.
Motor parameters:
- Rated voltage: 12V
- Rated power: 4.8W
- Motor type: permanent magnet brush
- Stall current: 2.8A
- Blocking torque: 10kgf.cm
- Rated current: 360mA
- Rated torque: 1.0kgf.cm
- Original speed: 11000rpm
- Reduction ratio: 1:30
Regrading the code disk speed measurement:
Regrading the code disk speed measurement:
If there is a deviation, the code disk can measure the speed in time to ensure that the speed of the two motors of the car is consistent.

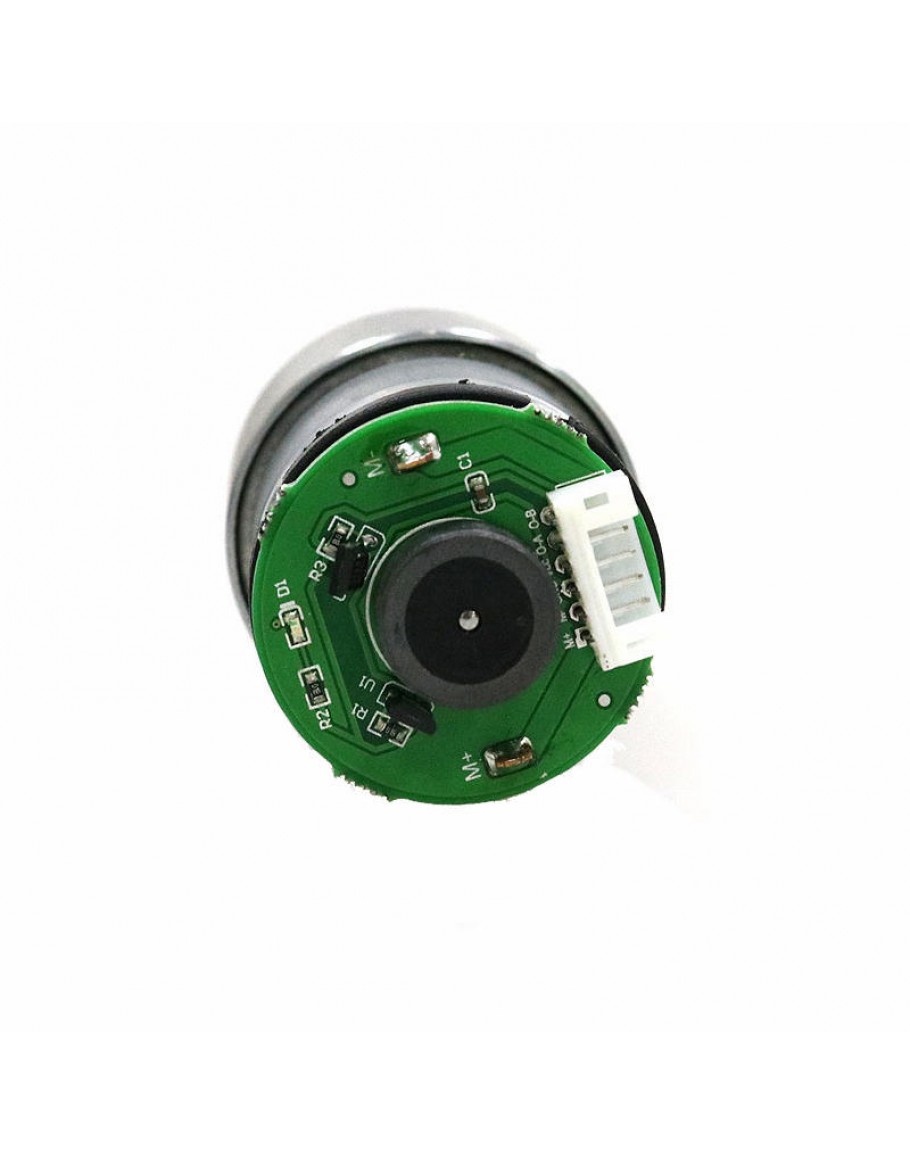

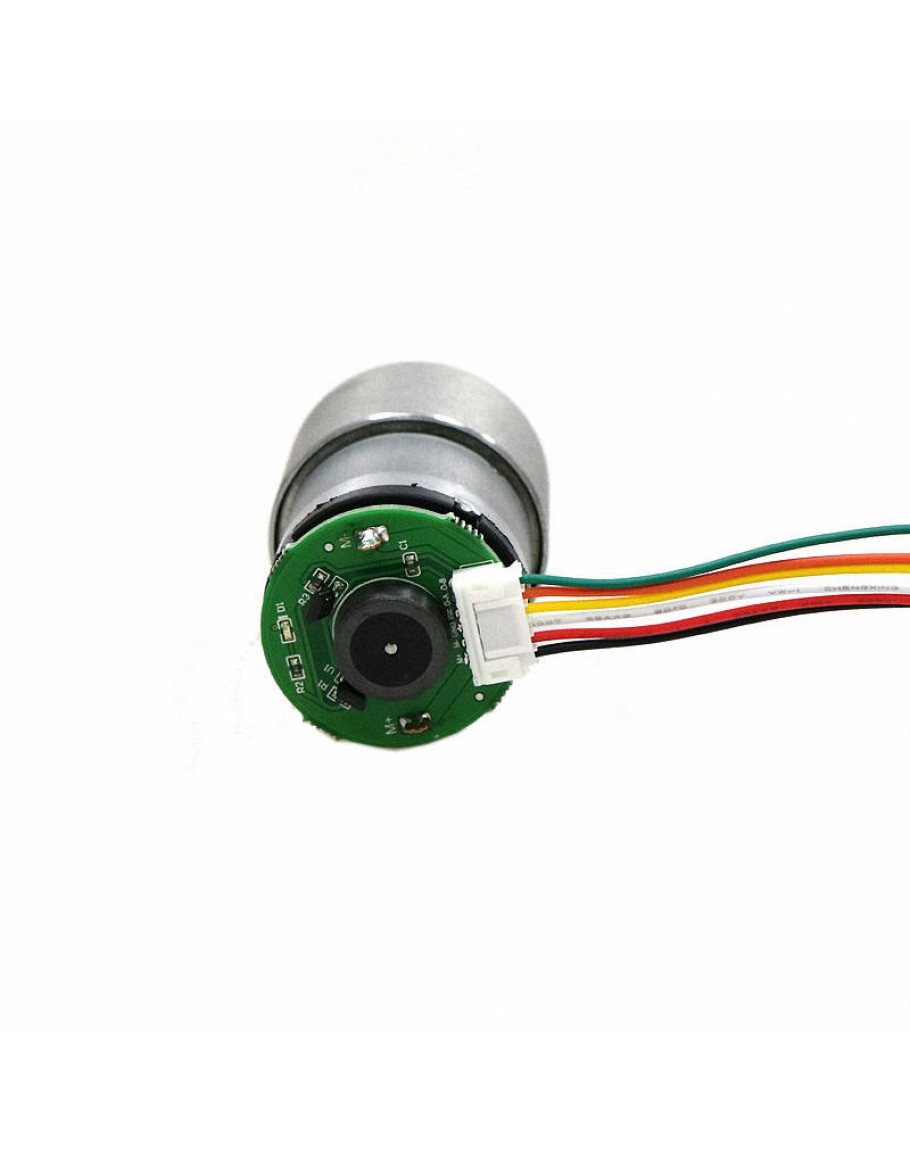

Code disk parameters:
Code disk parameters:
- 22 pole magnetization;
- AB phase incremental Hall encoder;
- The wheel turns one turn and outputs 330 complete pulses;
- Highly support DIY high-precision balance trolley;
Package List:
Package List:
1 x 37-520 motor
1 x motor line
