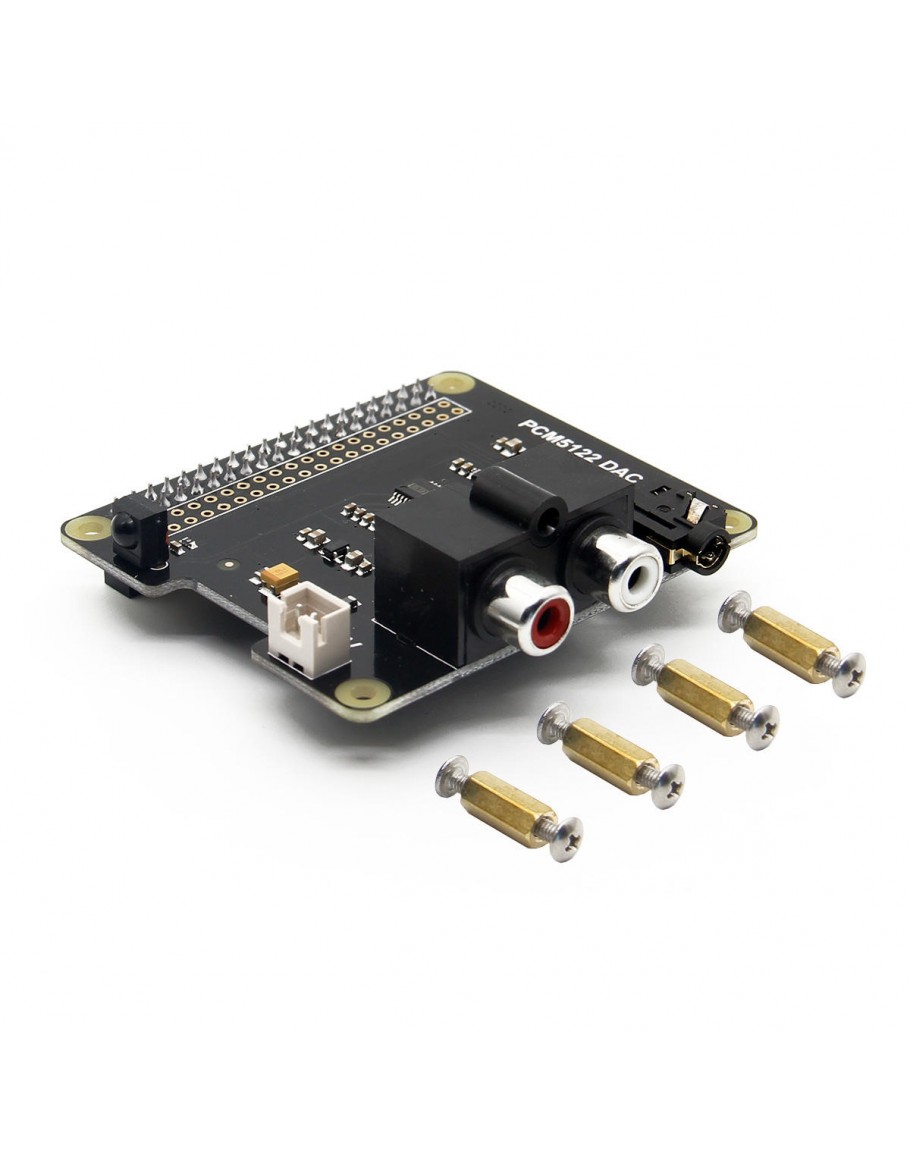

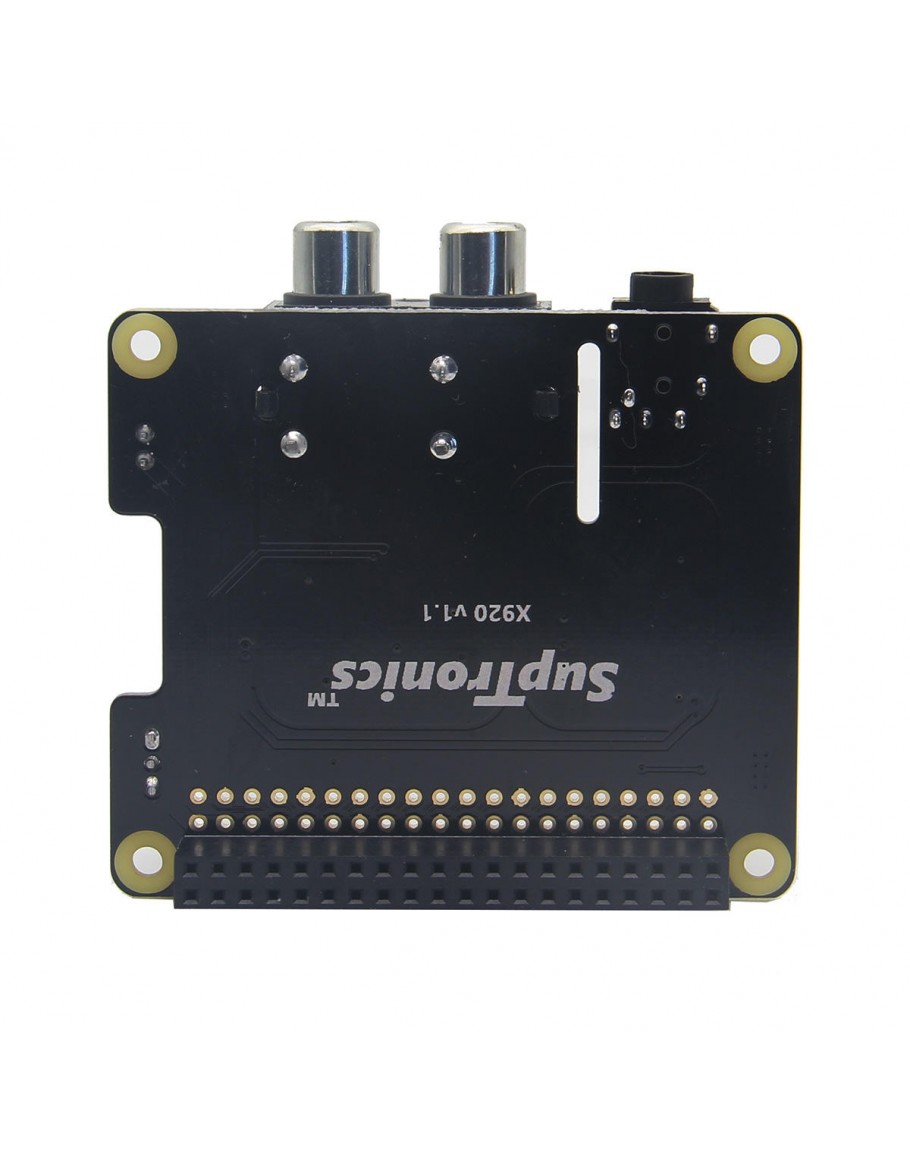

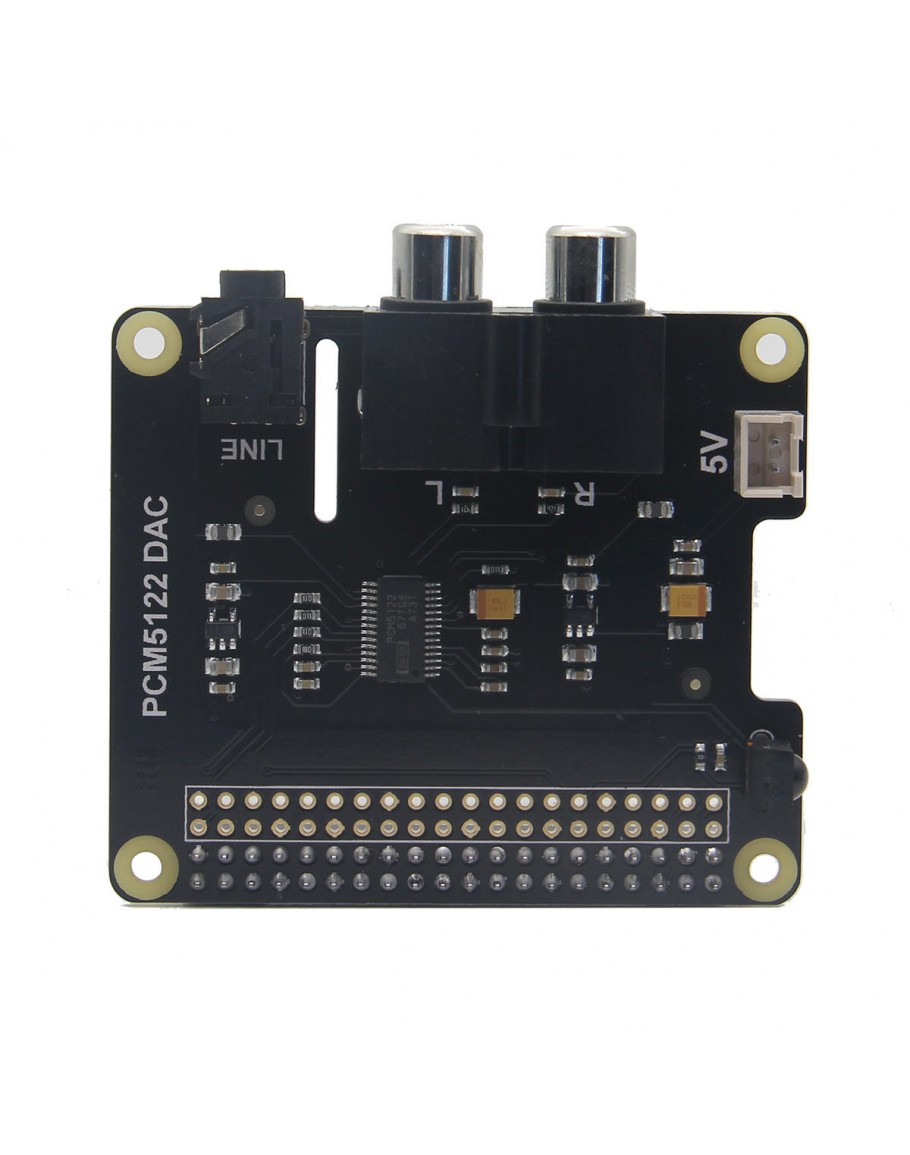

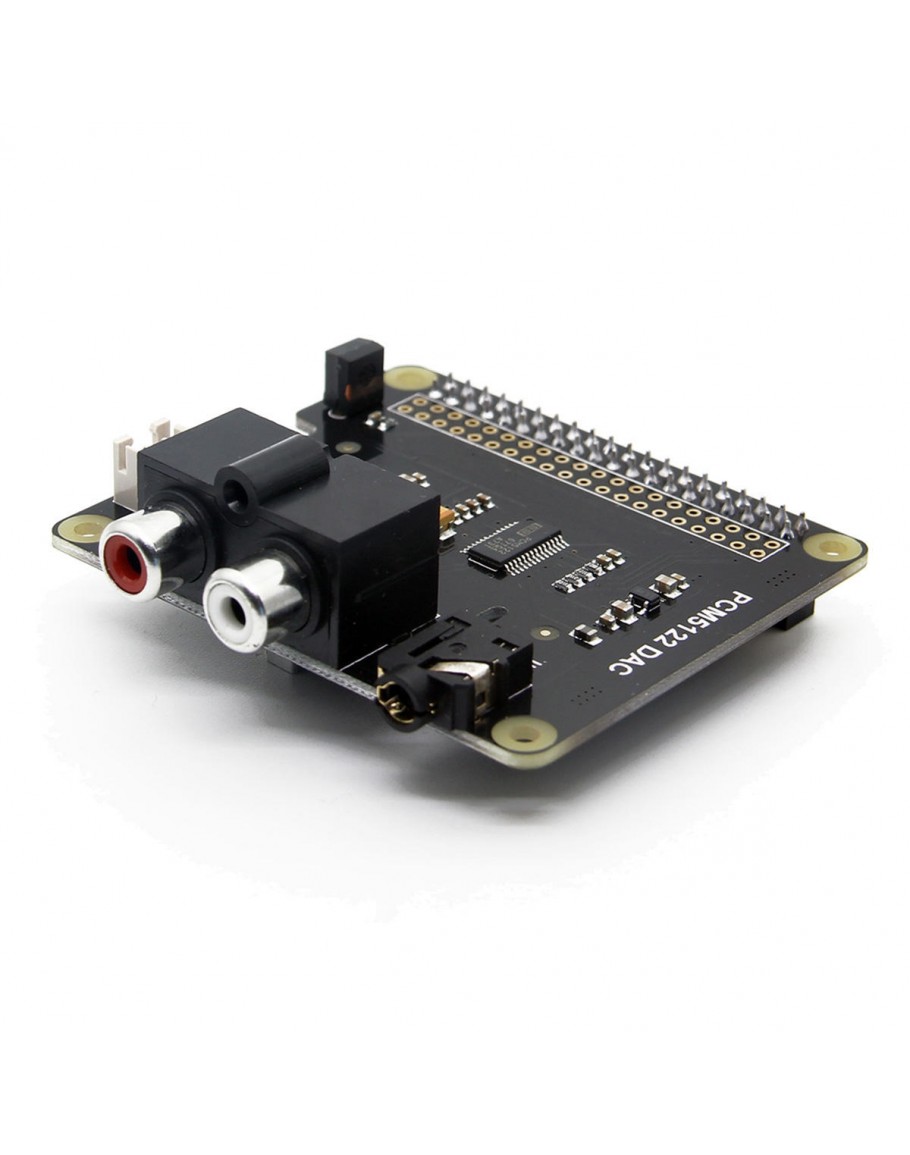

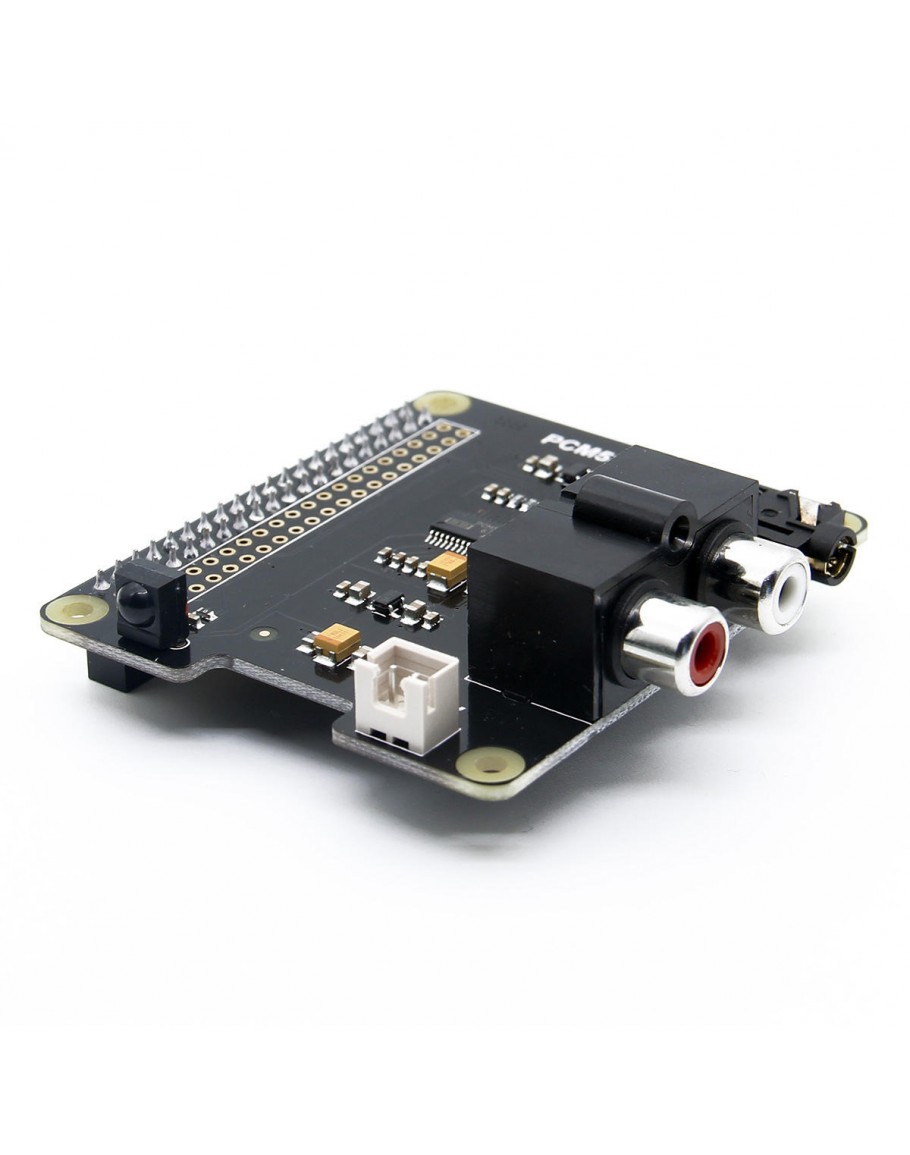

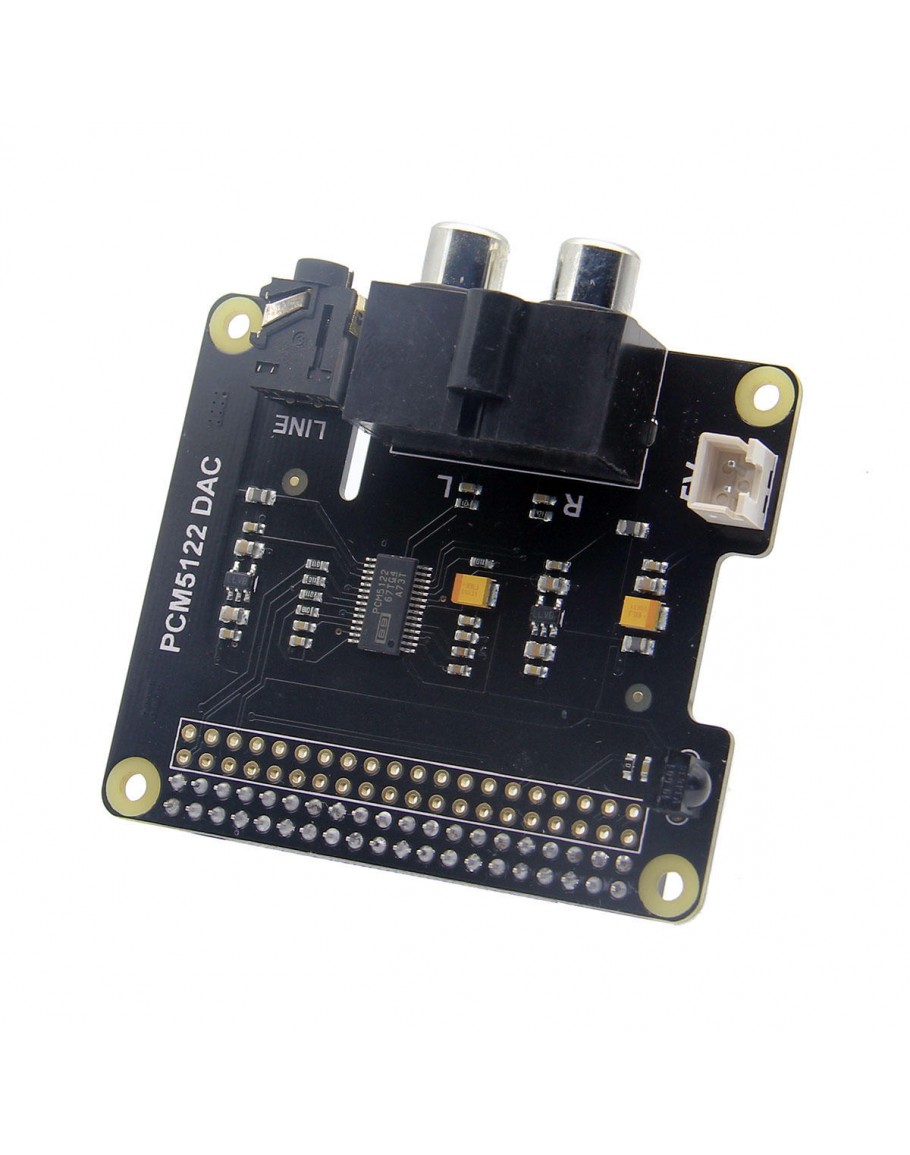

X920 HIFI DAC+ PCM5122 Expansion Board For Raspberry Pi 3 Model B / 2B / B+ / A+ / Zero W

Description:

The X920 expansion board is suitable for Raspberry Pi 3 Model B / 2B / B+/ A+ / Zero W
DAC All-function with PCM5122 chip
Operating System: All Raspberry Pi operating systems
Support the mainstream music player,such as Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.

Features:

- Full HD audio – up to 24-bit/192kHz playback

- Built in audiophile TI Burr Brown DAC (TI PCM5122)
- Class leading audio; 112db SNR, and -93db THD
- Integrated hardware volume control
- TI's LP5907 Ultra-low Noise voltage regulator for optimal audio performance
- Built in IR receiver (Vishay TSOP34838)
- Available with RCA and 3.5mm phone jack output connectors
- Powered by Raspberry Pi, no external power requirements
- Conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification
- Access to GPIO pins on HAT

Package Included:

1 x X920 Expansion Board
1 x Pack of Screws
